Description
Year: 2025

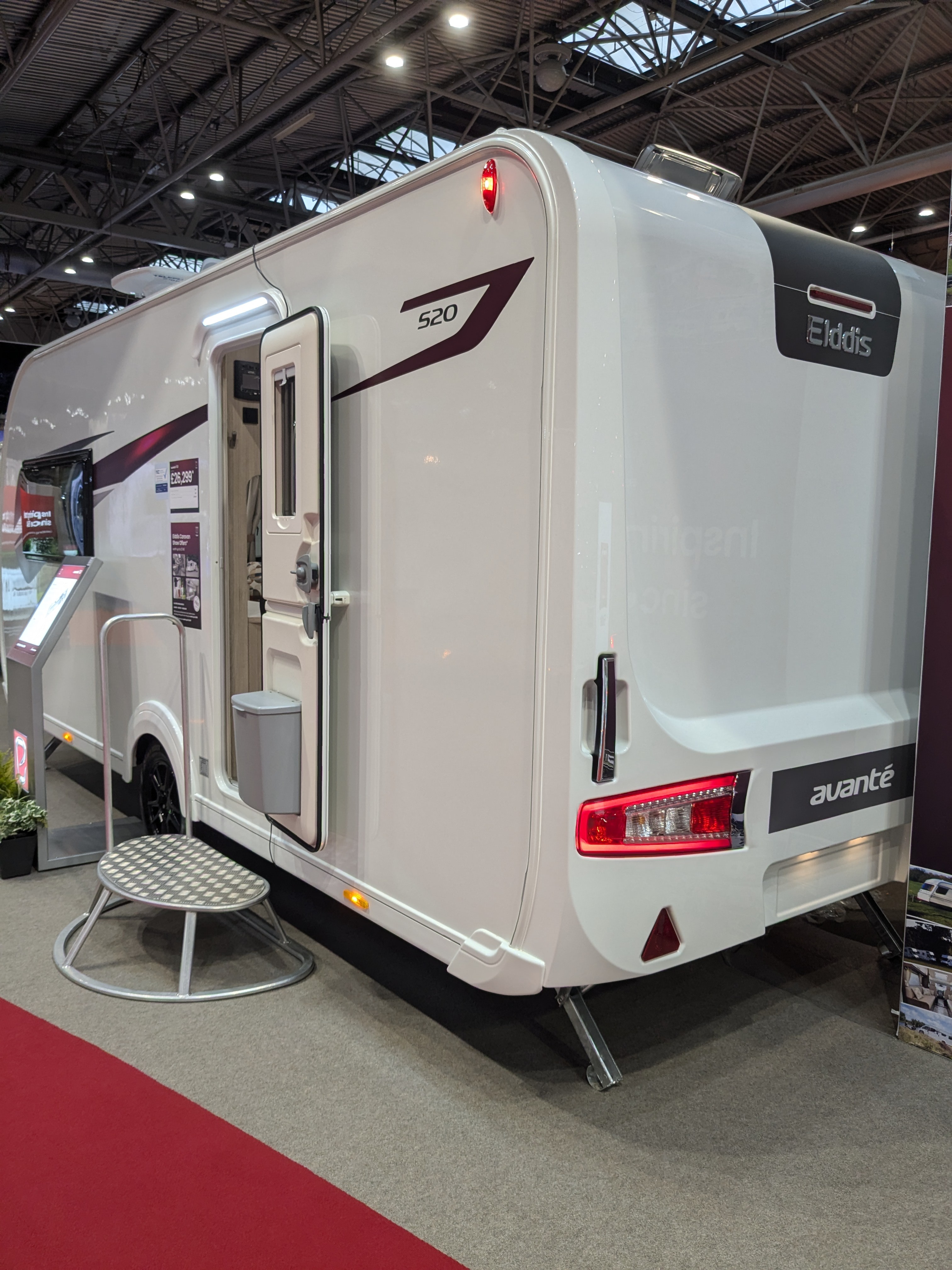

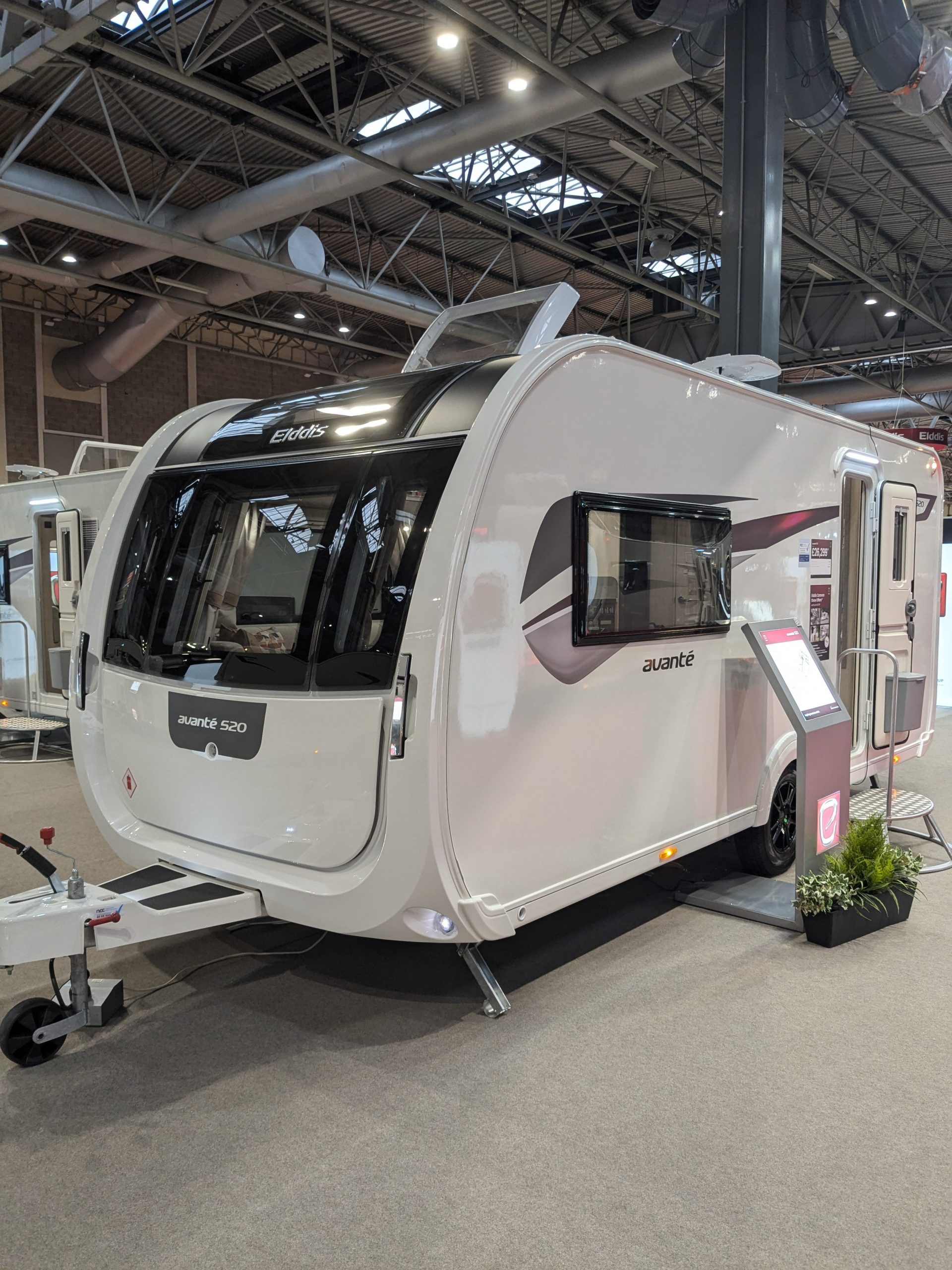

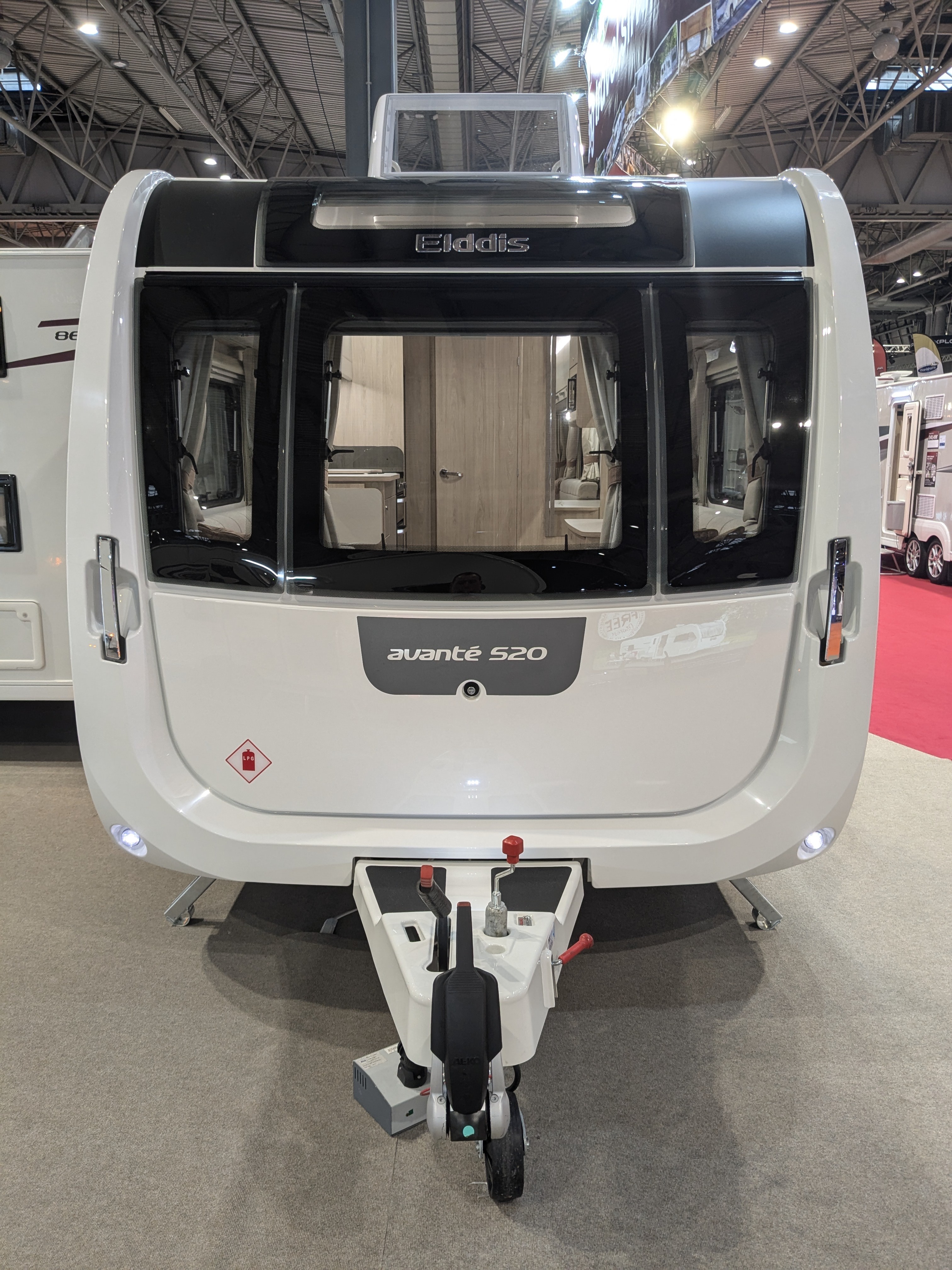

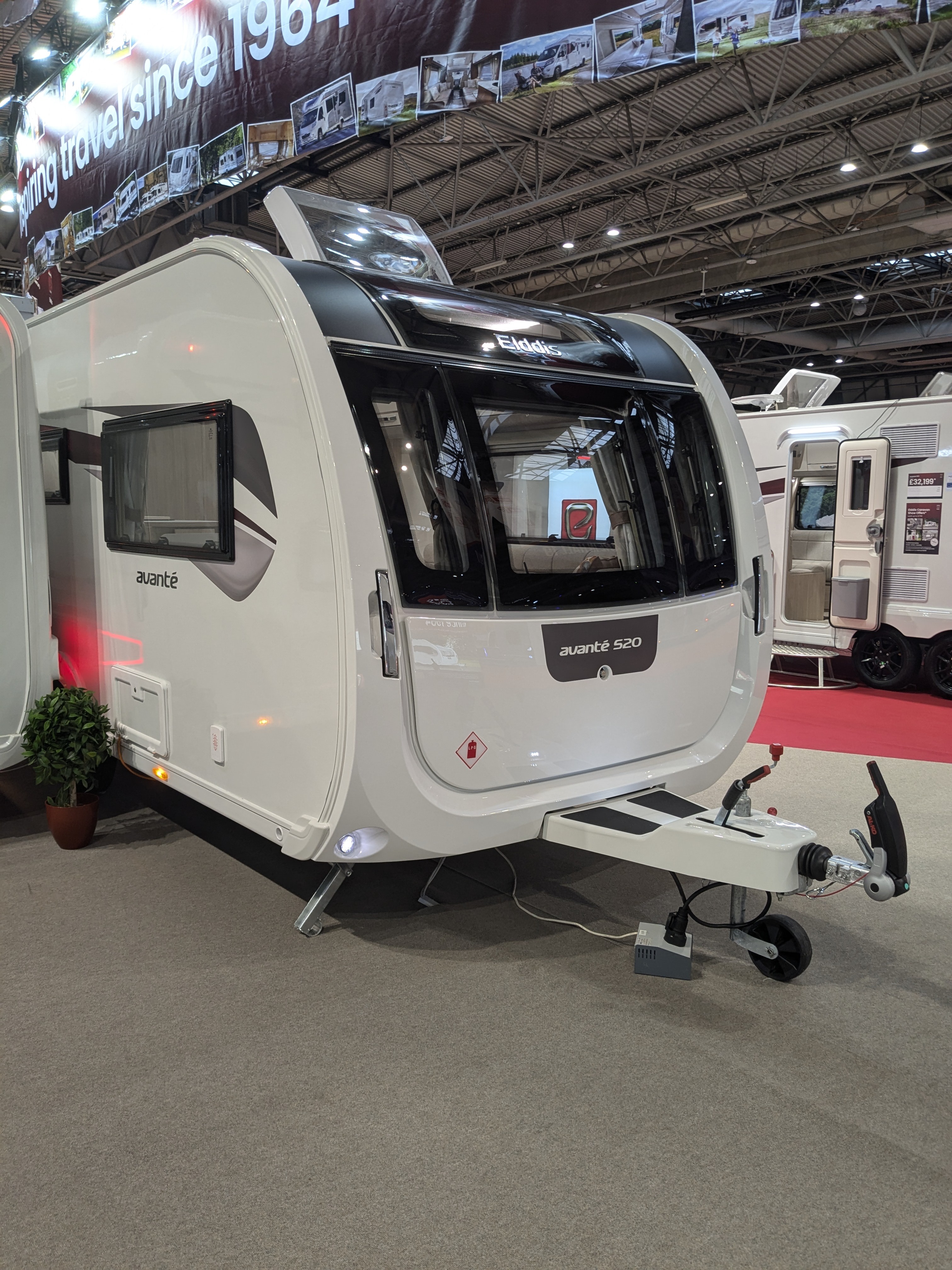

Model: Avante 520
Number of Berths: 2
Wheel Rim: 5 1/2 Jx14 5×112
Tyre Size: 185 R14 104
Tyre Pressure at MTPLM in psi: Downrate 52 / Standard 55 / Uprate 63
Interior Length: 5000mm / 16’5″
Exterior Body Length: 5583mm / 18’4″
Shipping Length: 6697mm / 22’0″
Overall Width: 2230mm / 7’4″
Overall Height: 2674mm / 8’9″
Overall Height Excluding TV Aerial: 2606mm / 8’7″
Maximum Headroom: 1975mm / 6’6″
Interior Width: 2118mm / 6’11″
Porch Awning Height: 2475mm / 8’1″
Awning Sizes Ground to Ground: 9580mm / 31’5″
Maximum Hitch Weight: 100kgs / 1.97cwt
Mass in Running Order (MIRO): 1214kgs / 23.90cwt
Optional Equipment Payload: 0
Maximum User Payload: 126kgs / 2.48cwt
Plated M.T.P.L.M: 1340kgs / 26.38cwt
Maximum M.T.P.L.M: 1500kgs / 29.53cwt
Front Mattress Sizes:
2 x Single: 1.83m x 0.72m 6’0″ x 2’4″ or 1 x Double: 2.08m x 1.43m 6’10″ x 4’8″
Side Dinette Mattress Sizes: N/A
Rear Mattress Sizes: N/A
