Description
Detailed information on layout, features, and technical details.Year: 2026

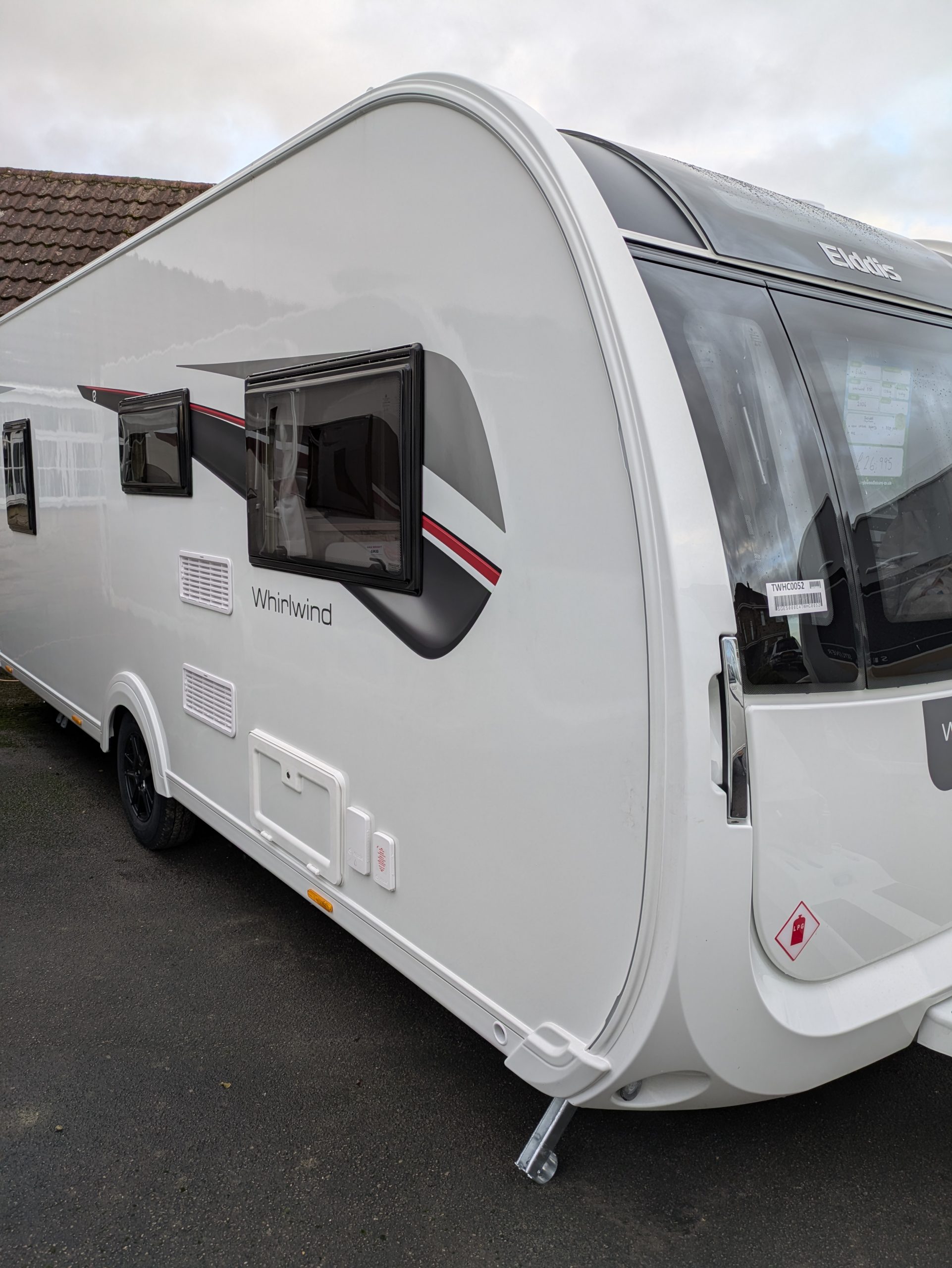

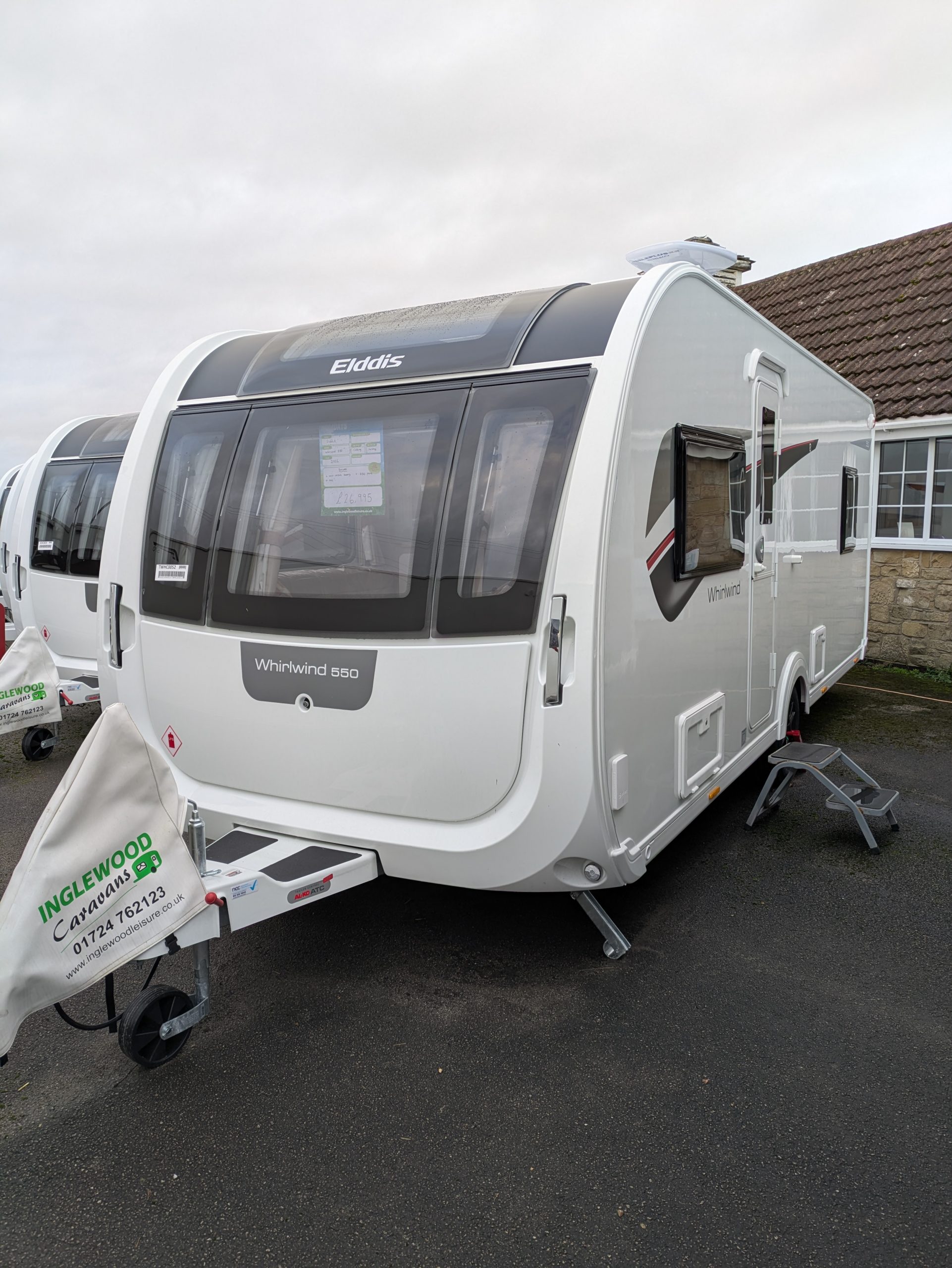

Model: Whirlwind Evolve 550
Number of Berths: 4
Wheel Rim: 5 1/2 Jx14 5×112
Tyre Size: 185 R14 104
Tyre Pressure at MTPLM in psi: Downrate 53 / Standard 56 / Uprate 61
Interior Length: 5779mm / 19’0″
Exterior Body Length: 6355mm / 20’10″
Shipping Length: 7475mm / 24’6″
Overall Width: 2230mm / 7’4″
Overall Height: 2686mm / 8’10″
Overall Height Excluding TV Aerial: 2606mm / 8’7″
Maximum Headroom: 1975mm / 6’6″
Interior Width: 2118mm / 6’11″
Porch Awning Height: 2475mm / 8’1″
Awning Sizes Ground to Ground: 10350mm / 33’11″
Maximum Hitch Weight: 100kgs / 1.97cwt
Mass in Running Order (MIRO): 1301kgs / 25.61cwt
Optional Equipment Payload: 91
Maximum User Payload: 154kgs / 3.03cwt
Plated M.T.P.L.M: 1455kgs / 28.64cwt
Maximum M.T.P.L.M: 1550kgs / 30.51cwt

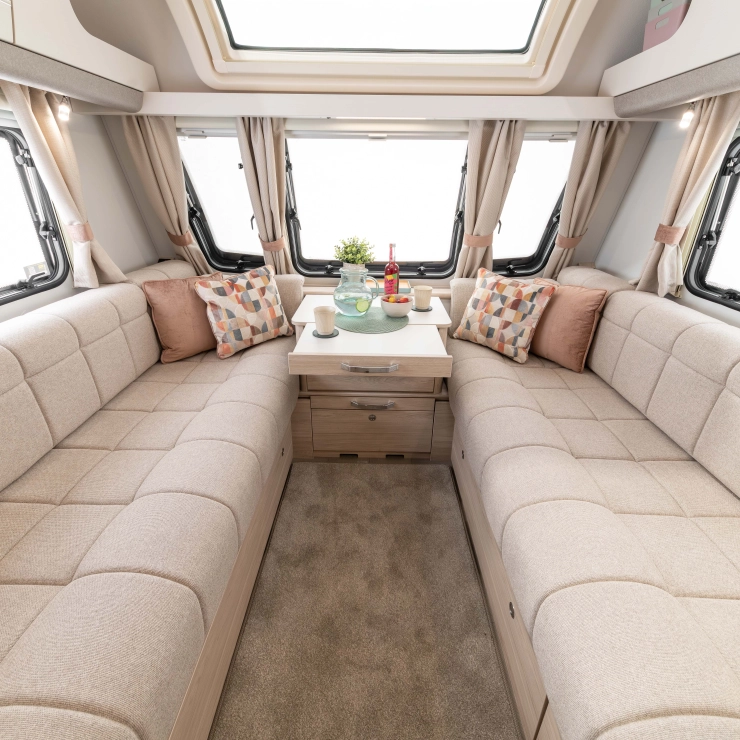

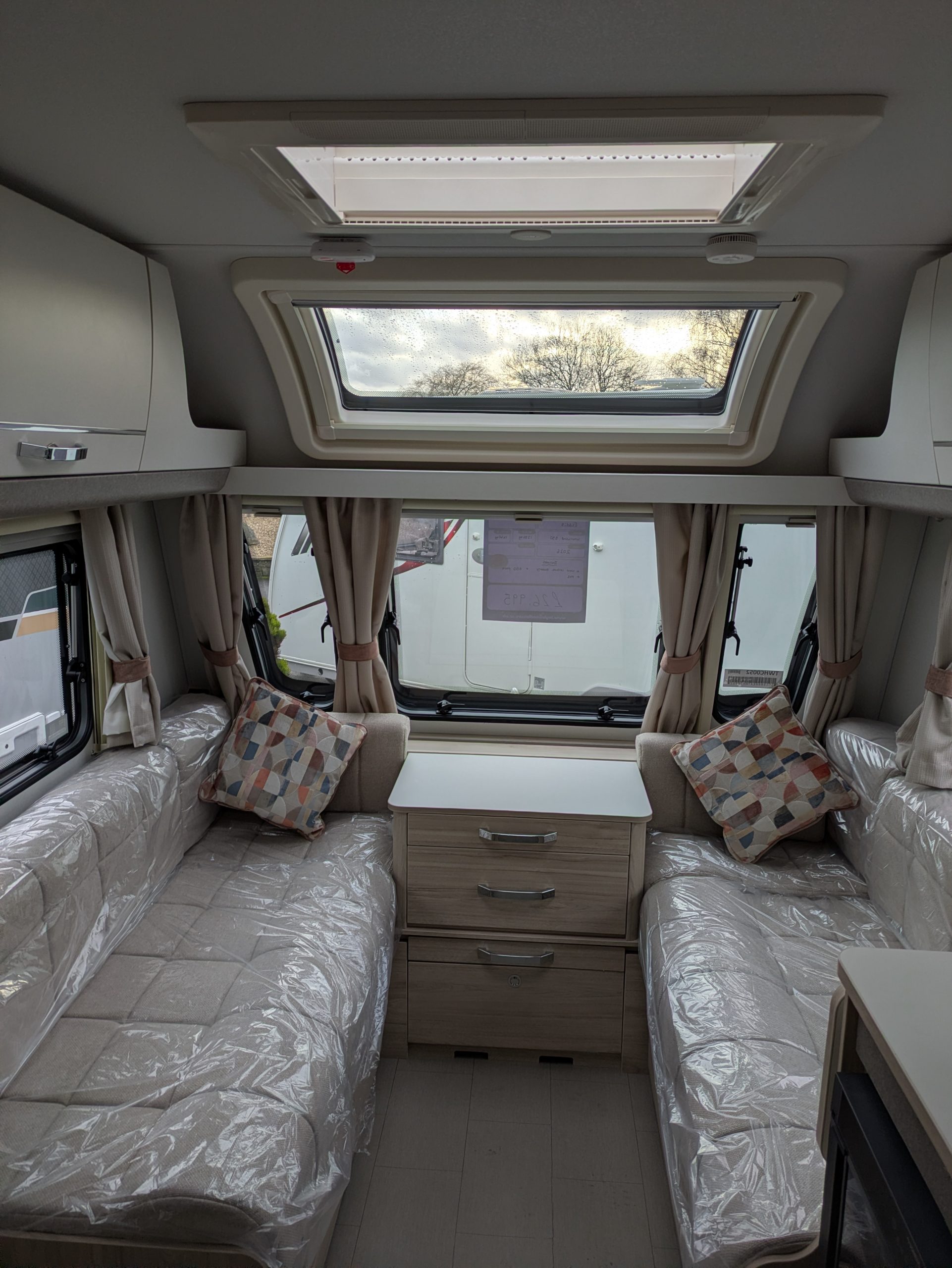

Front Mattress Sizes: 1 x Double 1115mm x 2080mm 3’8” x 6’10’
Side Dinette Mattress Sizes: N/A

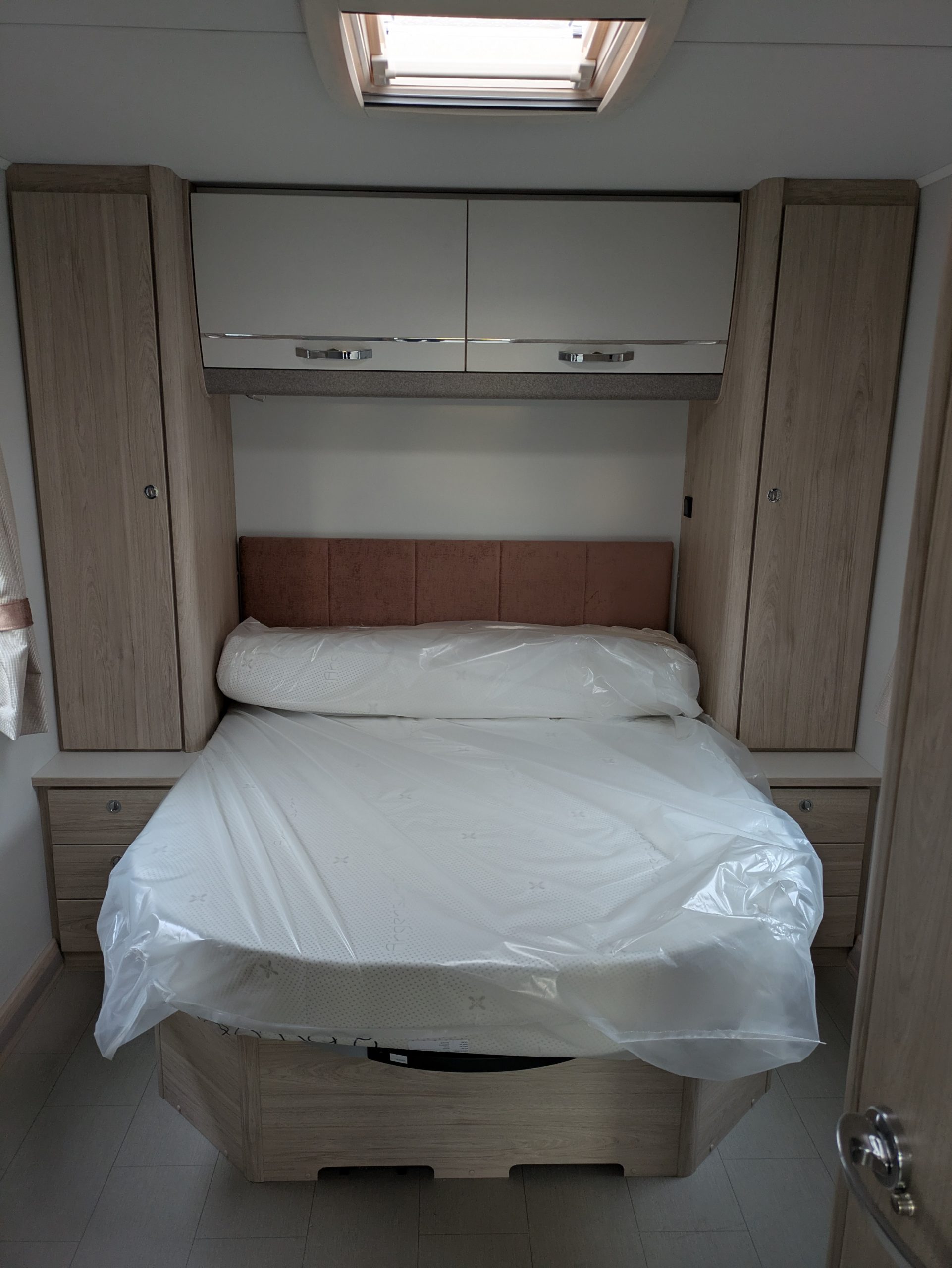

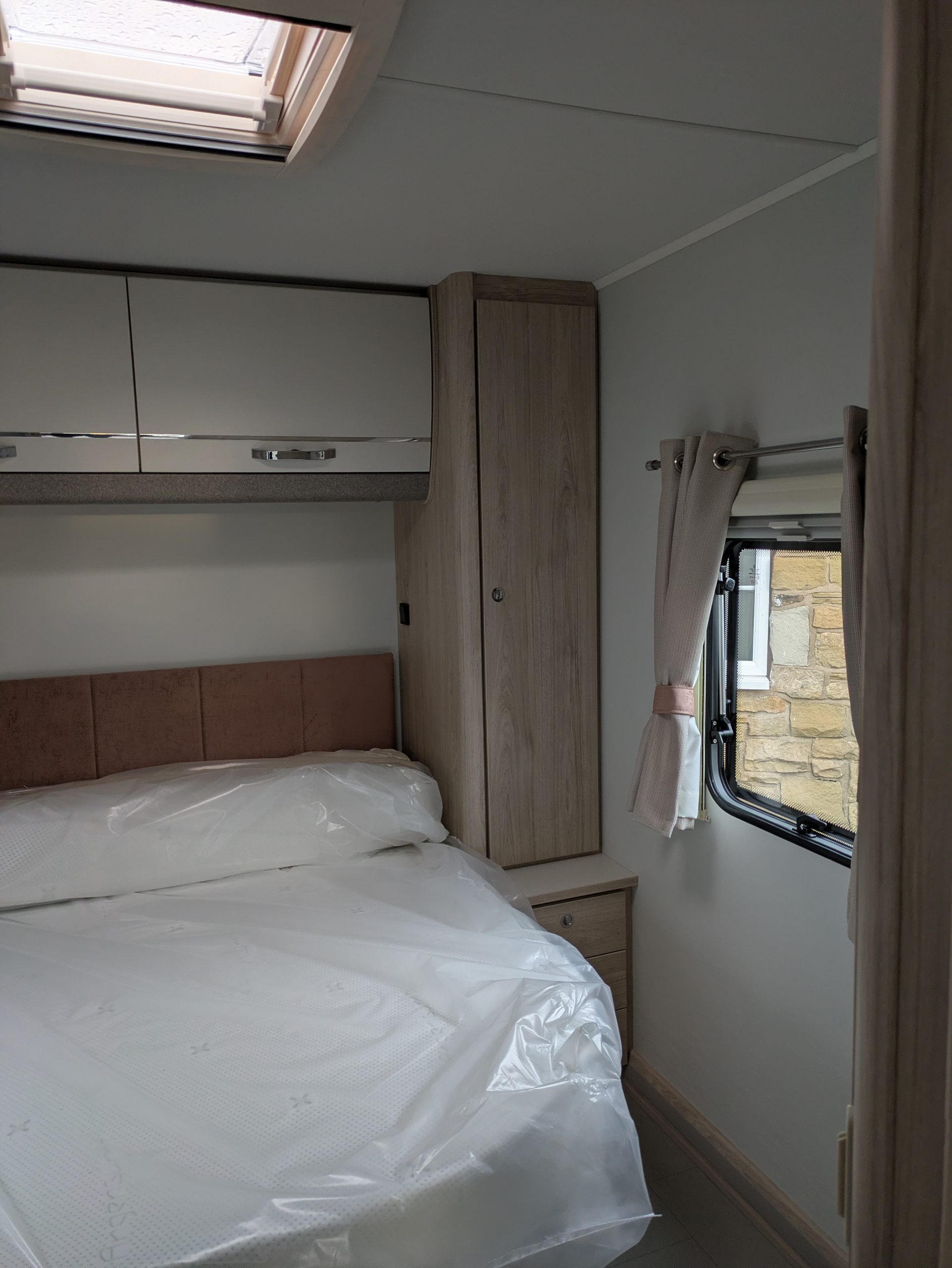

Rear Mattress Sizes: Fixed Double 1346 x 1900mm 4’5″ x 6’3″
